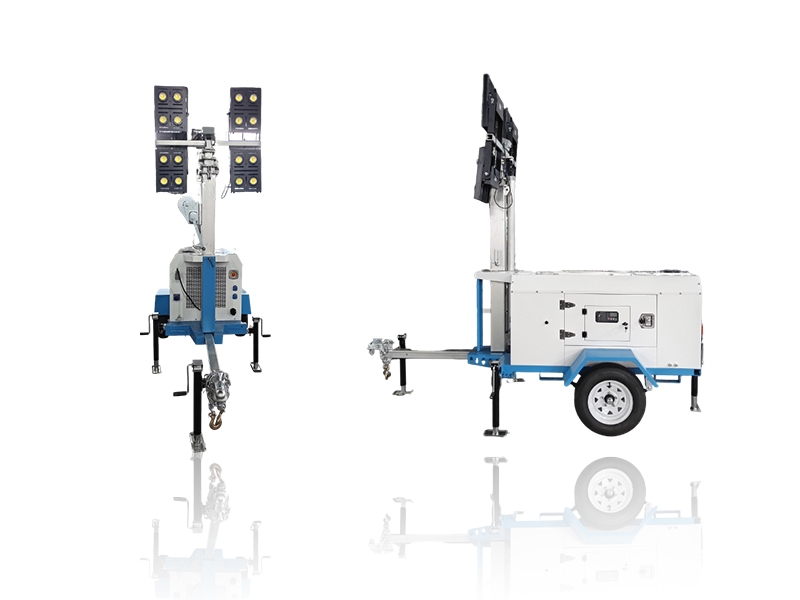

ON1400 3kW Diesel LED 4X350W Light Tower Generator Portable Mobile Construction Lighting Tower

Modèle :
ON1400
Vitesse :
1500RPM
Production nette nominale (PRP) :
50HZ/1500RPM
liquide de refroidissement :
Water
Nombre de cylindres :
4
Couverture lumineuse m2 :
4x350W
Lampes :
LED Lamp
Mât :
Manual
Caractéristiques :
Gull wing canopy

CATÉGORIES DE PRODUITS

NOUVEAUX PRODUITS

Générateur diesel YUCHAI ON-YC2250P 50 Hz 1800 kW 2250 kVA YC12VC3000-D30
EN SAVOIR PLUS
Générateur diesel ON2-W22 50 Hz 16 kW 20 kVA avec moteur RICARDO 4YT23-20D
EN SAVOIR PLUS
Générateur diesel ON2-W50 50 Hz 36 kW 45 kVA avec moteur RICARDO N4100ZDS-42
EN SAVOIR PLUS
Générateur diesel ON-W344 50 Hz 250 kW 313 kVA avec moteur RICARDO WT13B-308DE
EN SAVOIR PLUS
Alternateur 6,5 kW à économie d'énergie : réduit la charge du moteur et améliore le rendement énergétique
EN SAVOIR PLUS

Why Choose Our Light Tower Generator?

All-in-One Solution – No separate generator needed
Fuel & Energy Efficient – Save up to 40% on diesel costs (hybrid models)
Global Certifications – CE, ISO, OSHA-compliant
24/7 Support – Spare parts & technical assistance

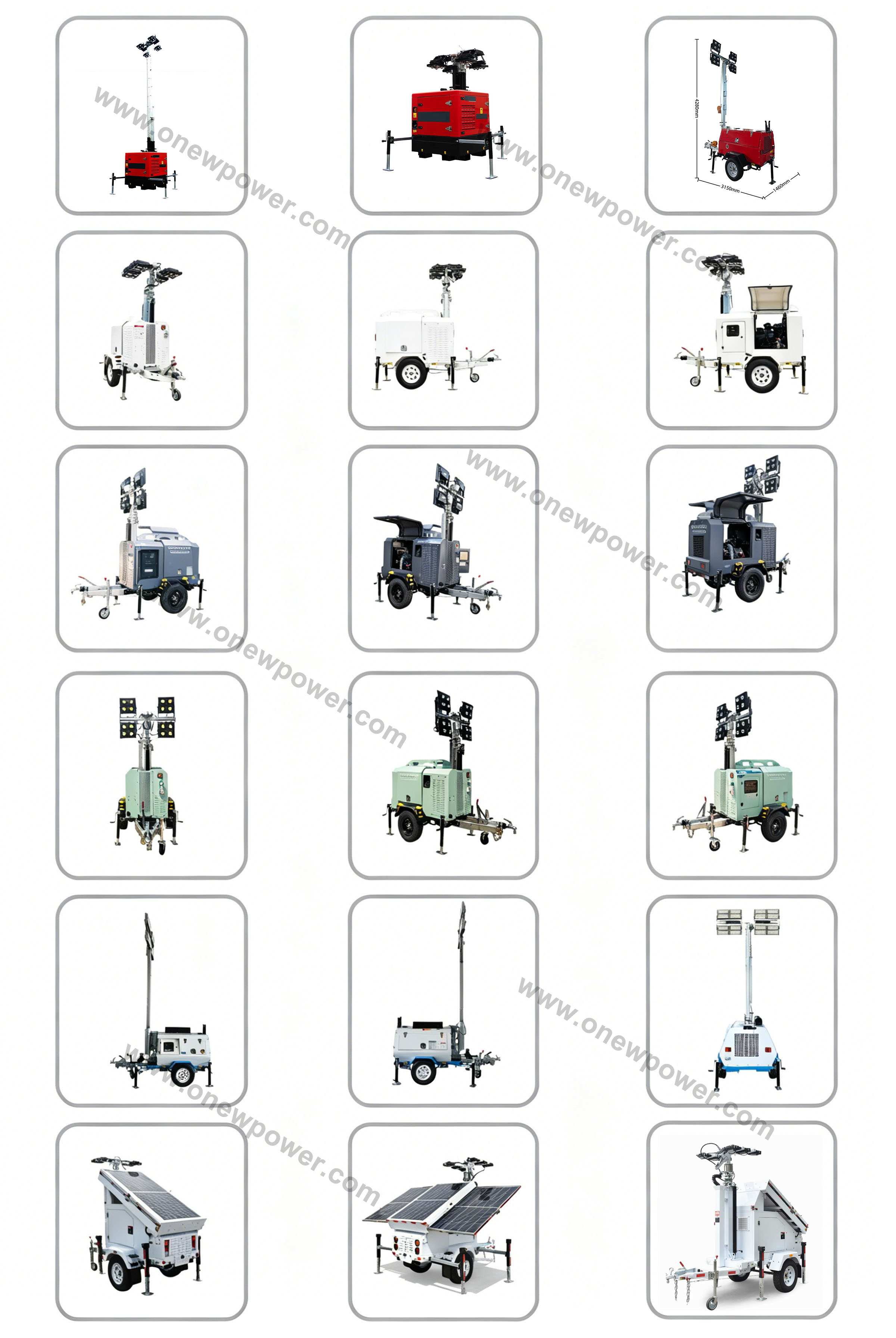

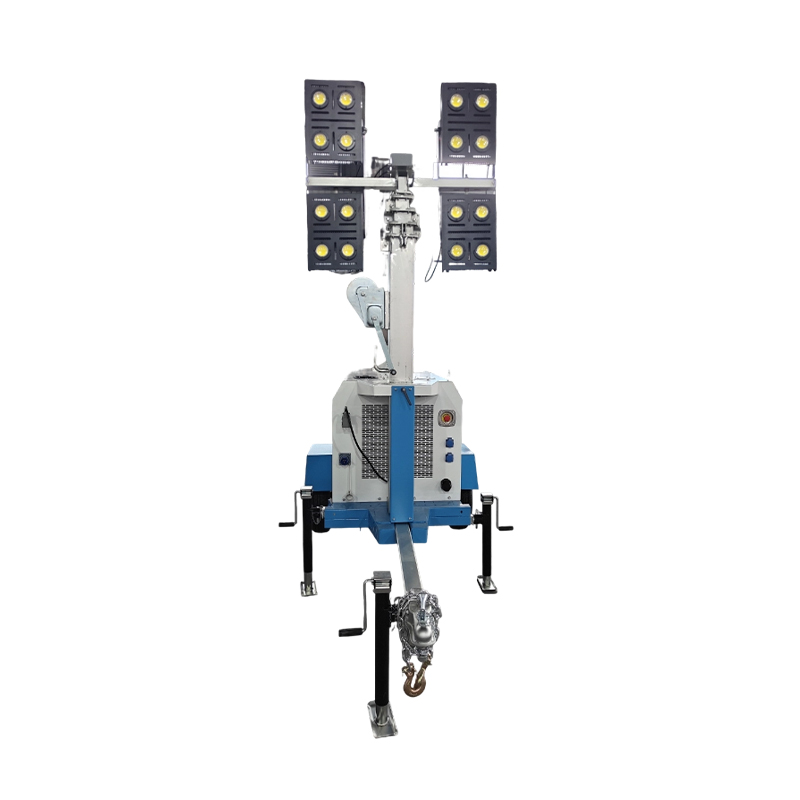

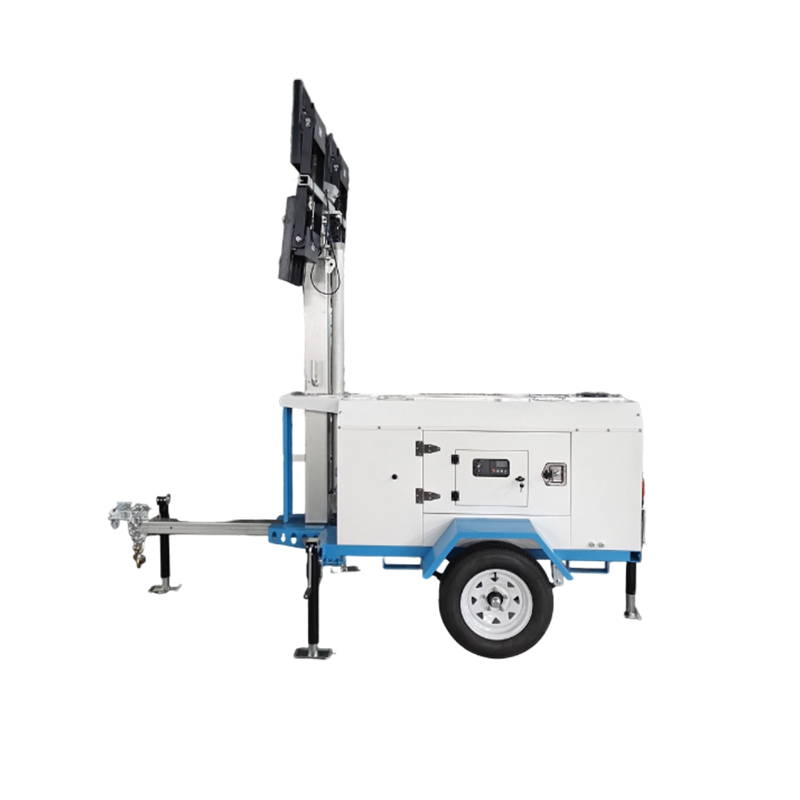

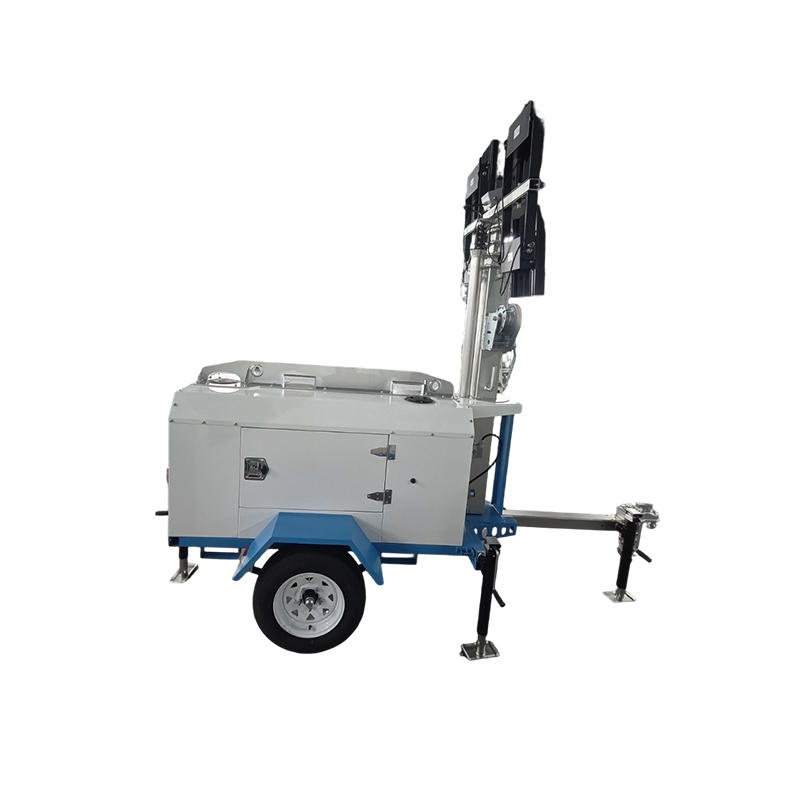

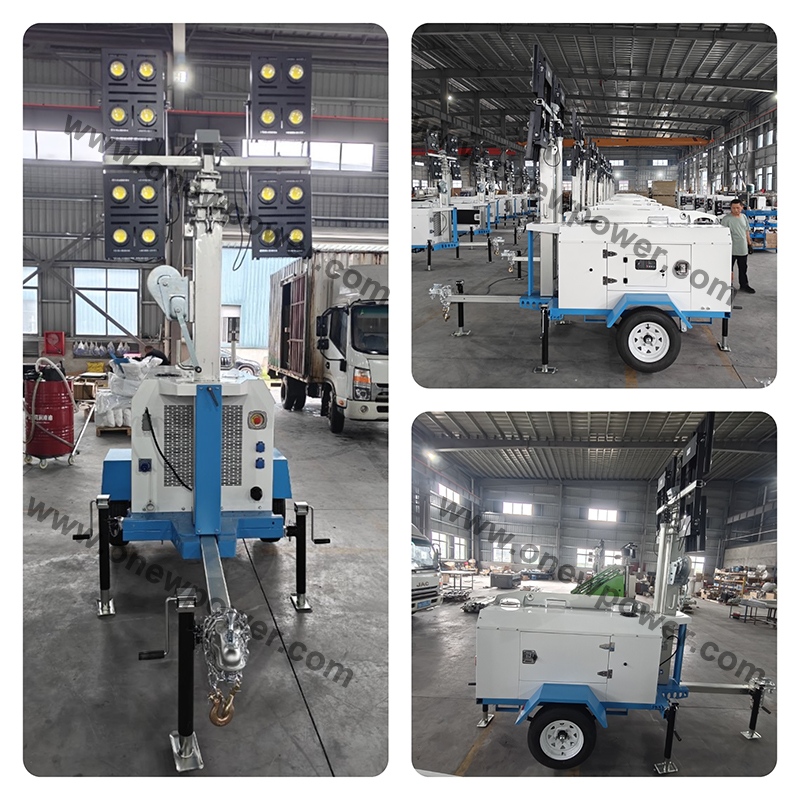

Product Display

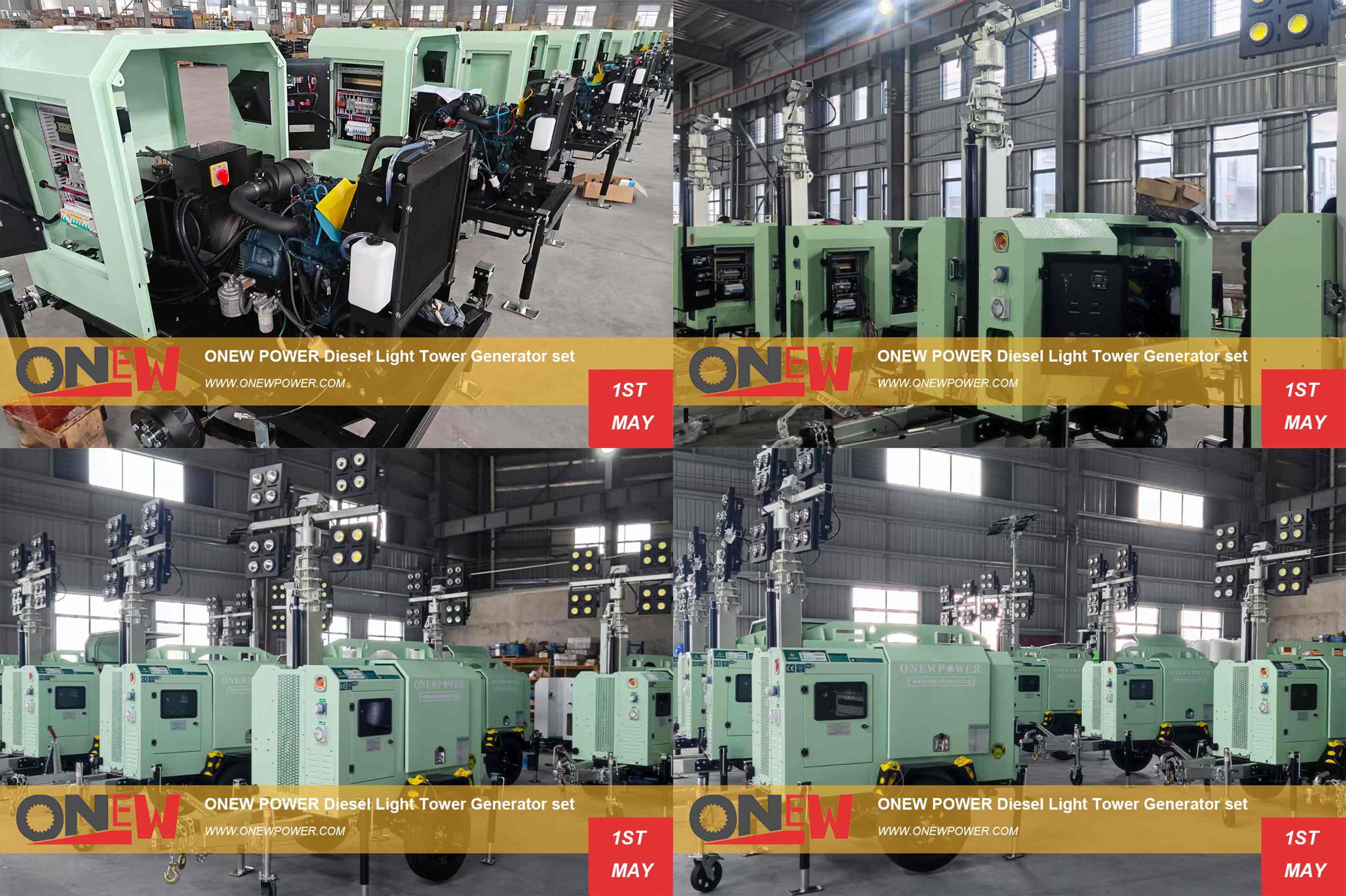

Product Flow

Key Advantages

Space-saving: Combined power+lighting reduces site equipment by 40%
Fuel-efficient: Smart throttle saves 15-20% vs conventional systems
Quick deployment: Fully operational in <5 minutes

For project-specific configurations (voltage, mast height, lighting patterns), please consult our engineering team.

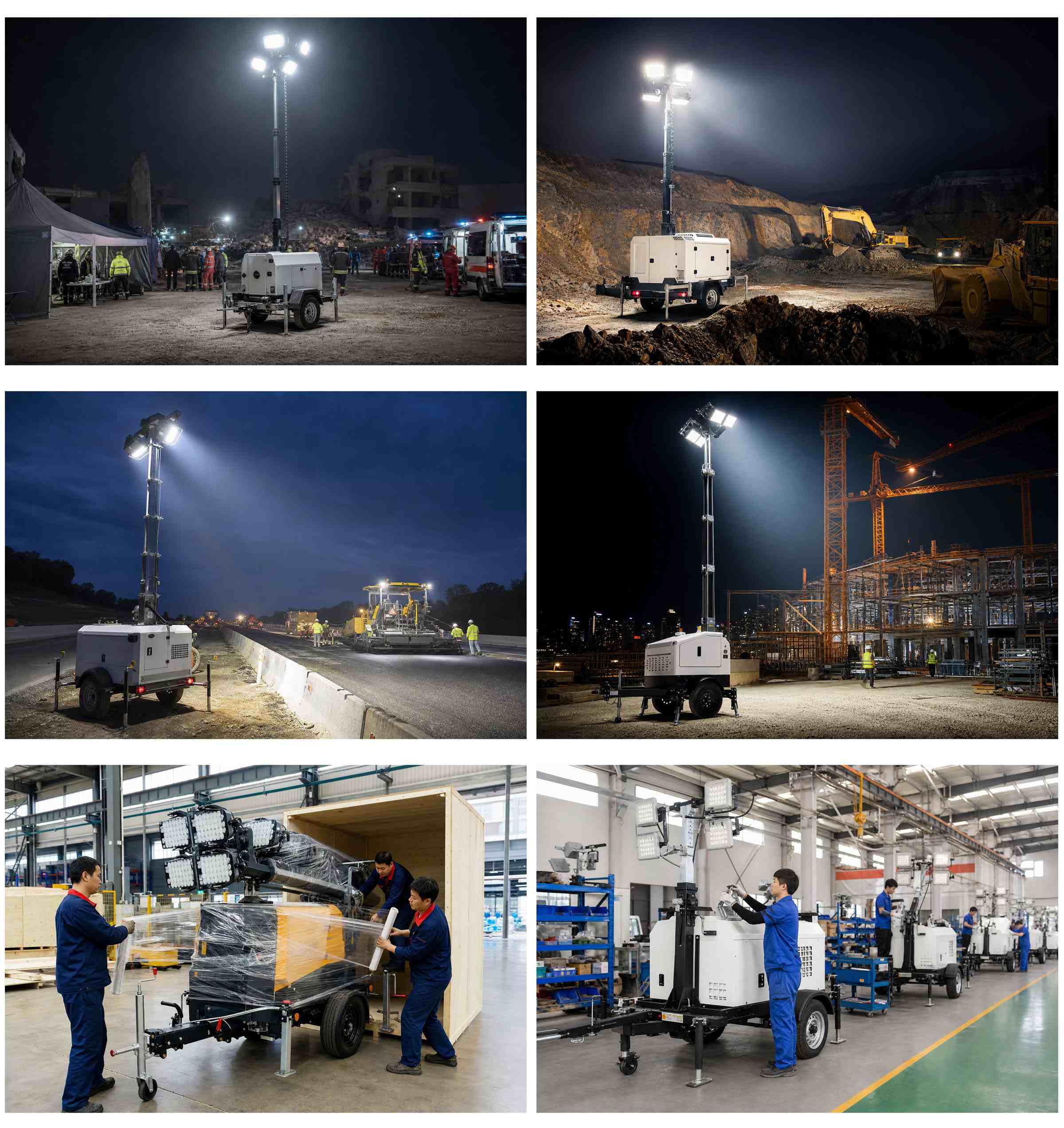

Applications

Construction & Roadwork – Night shifts, remote sites
Mining & Oilfields – Hazardous area lighting
Emergency Lighting – Disaster recovery, power outages
Events & Security – Outdoor festivals, parking lots

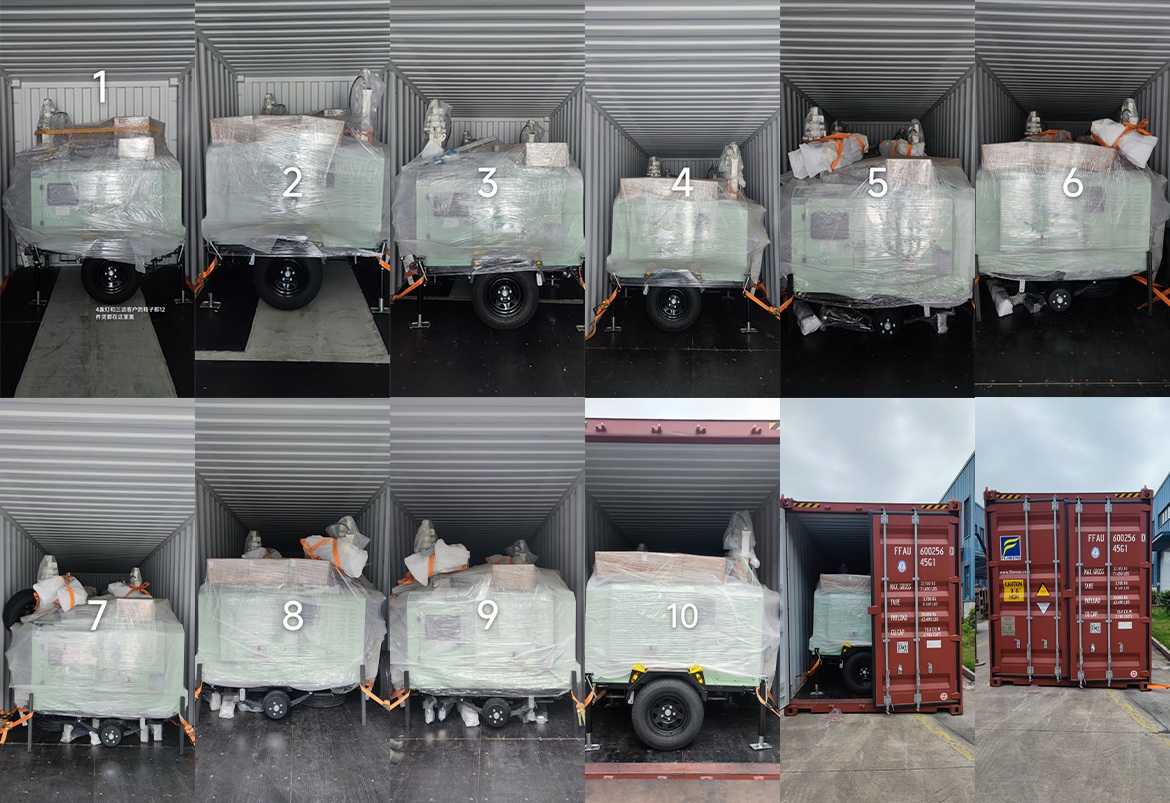

Product Packing

LEAVE A MESSAGE

Lighting Tower Technical Data
Lamps	ON1400
Type	LED Lamp
Wattage	4x350W
Luminous	224000
Illuminating Area	>3000 M2
Life time	50000 hrs
Mast
Type	Manual
Sections	5
Max Height	8M
Rotation	350 Degree Manual
Maximum Towing Speed	80Km/h
Tilt head	90 degress Manual
Genset
Rated Frequency	50Hz
Rated Voltage	230V single phase
Max Output	2.6kw
Rated Output	2.4kw
Fuel Tank	80L
Working Hours	>60hrs ( Lamp only)
Muffler	Big Silent Muffler Inside
Battery	12V 60AH
Engine
Model	Kubota Z482
Fuel	diesel
Cylinder Number	2
Speed	1500rpm
Output	4.1kw
Displacement	479cc
Coolant	water-cooled diesel
Alternator
Model	ONS134B
Type	Brushless, self excitation
Rated Output	4kW
Max Output	4.4kW
Insulation/Protection	H / IP21
Control Panel
Controller	Deepsea
Socket Type	16A Industrial Socket
Plug Type	16A Industrial Plug
Overload protector	Yes
Trailer
Supporting leg	4, adjustable
Brake System	BALL TAILER,NO BRAKE
Taillight Signal	Warning Reflector
Forklift Mouth	Yes
Package
Dimension Restracted	3300x 1440x 2850mm
Net Weight	800KG
Loading 20/40	10/20' 20/40'
Warranty	One year

ON1400 3kW Diesel LED 4X350W Light Tower Generator Portable Mobile Construction Lighting Tower

1. High-Brightness LED Lighting

50,000–100,000 Lumens (adjustable)

4x 360° Rotating LED Lamps for full-area coverage

10m–12m Extendable Mast (manual/hydraulic)

2. Reliable Power Generation

Diesel/Solar/Hybrid Options

Diesel: Kubota/Yanmar Engine (6kW–20kW, Tier 4 Compliant)

Solar Hybrid: 200Ah–400Ah Battery + Solar Panel Support

Automatic Voltage Regulation (AVR) for stable power output

3. Rugged & Portable Design

Heavy-Duty Steel Frame with anti-corrosion coating

Integrated Tow Bar & Wheels for easy transport

IP65 Weatherproof Rating (dustproof & waterproof)

4. Smart Control & Efficiency

Auto Start/Stop (light sensor or timer)

Remote Monitoring via mobile app (fuel level, battery status, faults)

Low Noise Operation (65–75 dB)
